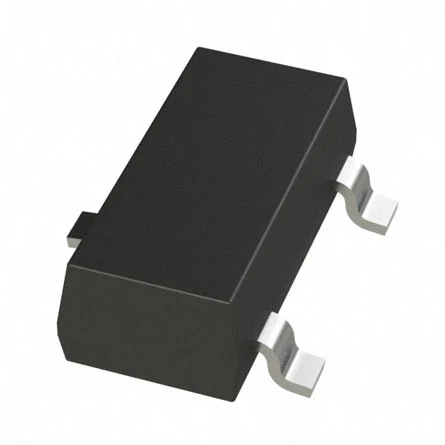

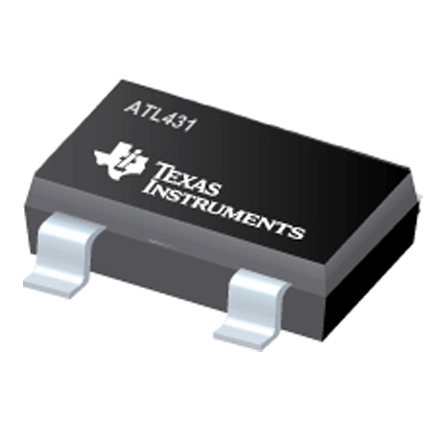

Texas Instruments ATL431AQDBZR technical specifications, attributes, and parameters. V-Ref Adjustable/Precision 2.5V to 36V 100mA 3-Pin SOT-23 T/R. 2.5-V low-IQ adjustable precision shunt regulator 3-SOT-23 -40 to 125. Three Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, PDSO3.

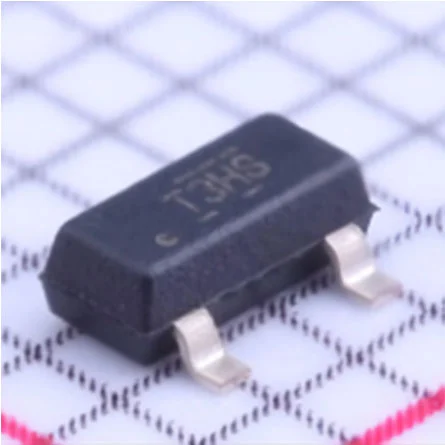

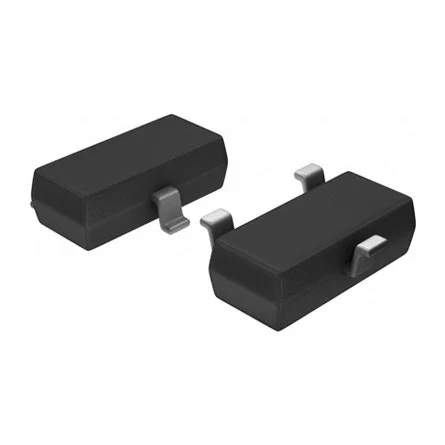

Case/Package | SOT-23 |
Mount | Surface Mount |
Number of Pins | 3 |
Cathode Current | 35 µA |
Max Operating Temperature | 125 °C |
Max Output Voltage | 36 V |
Min Operating Temperature | -40 °C |
Min Output Voltage | 2.5 V |
Output Current | 100 mA |
Output Type | Adjustable |
Packaging | Tape & Reel (TR) |
Reference Type | Shunt |
Schedule B | 8542390000, 8542390000|8542390000|8542390000| 8542390000|8542390000 |
Temperature Coefficient | 82 ppm/°C |
Tolerance | 1 % |
Height | 1.22 mm |
Length | 2.92 mm |
Thickness | 1 mm |
Width | 1.3 mm |
Lead Free | Lead Free |
Lifecycle Status | Production (Last Updated: 5 days ago) |
Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
