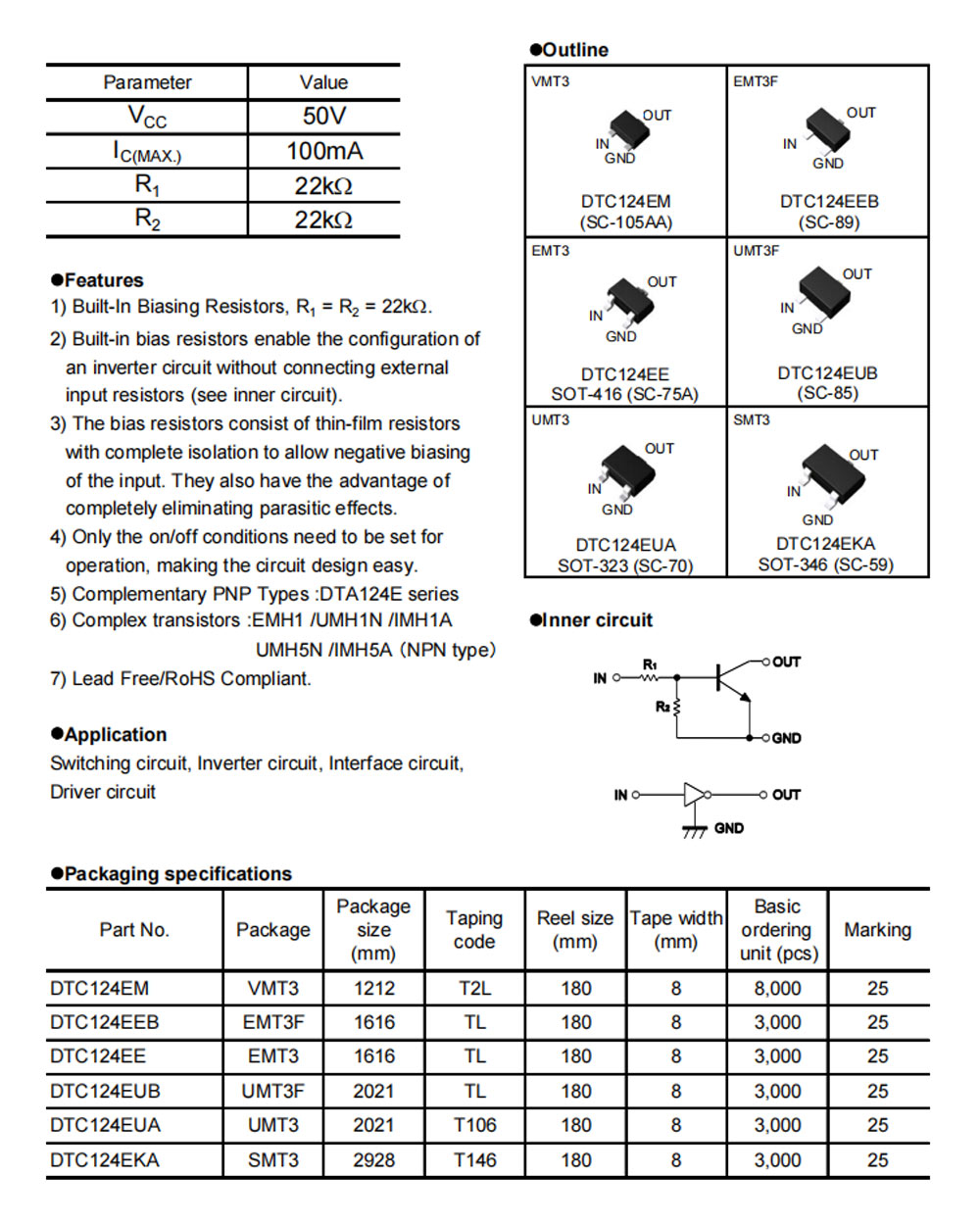

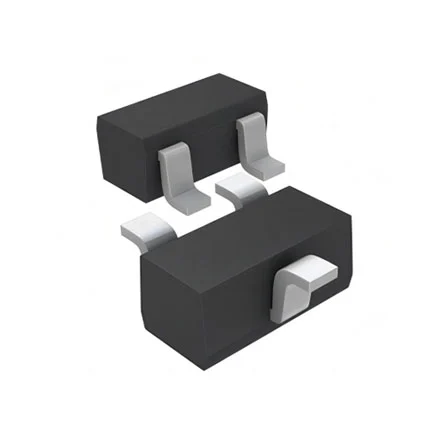

DTC124EETL

Built-In Biasing Resistors, R 1 = R 2 = 22kW.

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit).

The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects.

Only the on/off conditions need to be set for operation, making the circuit design easy.

Complementary PNP Types :DTA124E series

Complex transistors :EMH1 /UMH1N /IMH1A l lInner circuit UMH5N /IMH5A （NPN type）

Lead Free/RoHS Complian
