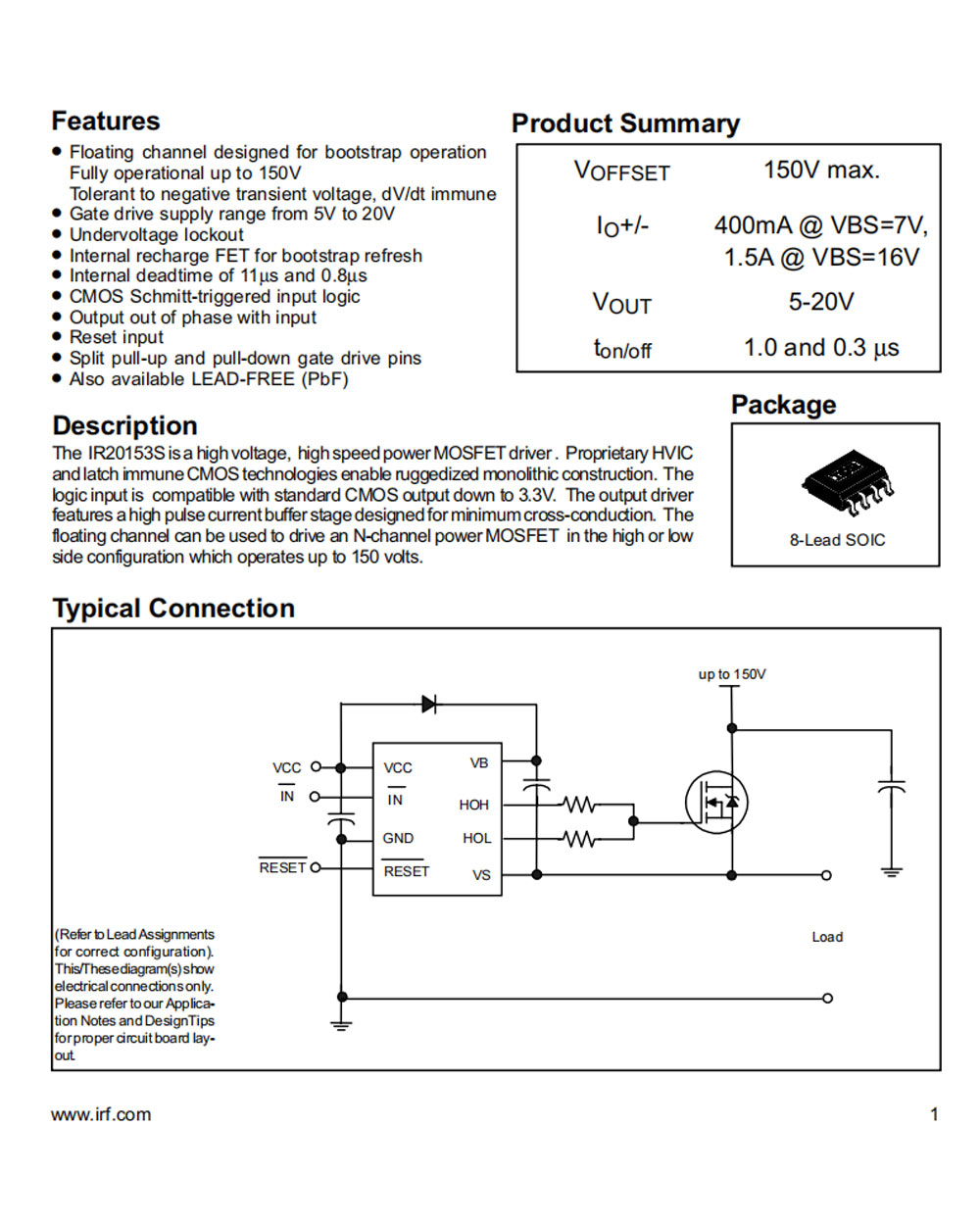

IR2015STRPBF

• Floating channel designed for bootstrap operation Fully operational up to 150V

      Tolerant to negative transient voltage, dV/dt immune

• Gate drive supply range from 5V to 20V

• Undervoltage lockout

• Internal recharge FET for bootstrap refresh

• Internal deadtime of 11µs and 0.8µs

• CMOS Schmitt-triggered input logic

• Output out of phase with input

• Reset input

• Split pull-up and pull-down gate drive pins

• Also available LEAD-FREE (PbF)
