STGF19NC60KD

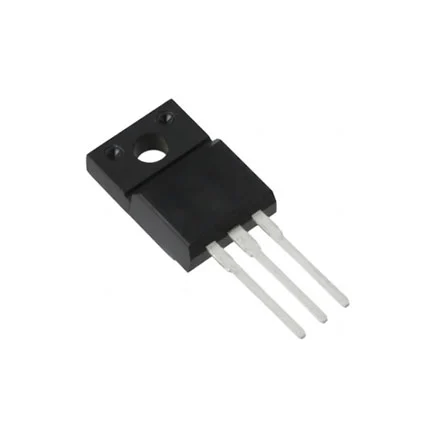

The STGF19NC60KD is a power IGBT transistor manufactured by STMicroelectronics. It is a high-performance device with a voltage rating of 600V and a current rating of 30A. The transistor is designed for use in various applications, such as inductive heating, switch-mode power supplies, high-frequency inverters, and motor control drives.

One of the main features of the STGF19NC60KD is its low forward voltage drop and low saturation voltage. The combination of these features results in low power dissipation and improved energy efficiency. The transistor has a fast switching speed of trr = 100 ns and tf = 200 ns, making it ideal for high-frequency switching applications.

The STGF19NC60KD also has an integrated antiparallel diode, allowing it to be easily used in full-bridge configurations. This feature helps to simplify the overall circuit design and reduce component count. The device is designed to operate under high-temperature conditions and is constructed with lead-free and RoHS compliant materials, making it environmentally friendly.

Overall, the STGF19NC60KD is a highly reliable and robust device capable of delivering high performance in a wide range of industrial and commercial applications. It is well-suited for a variety of high-power applications that require fast-switching capabilities and energy efficiency.
