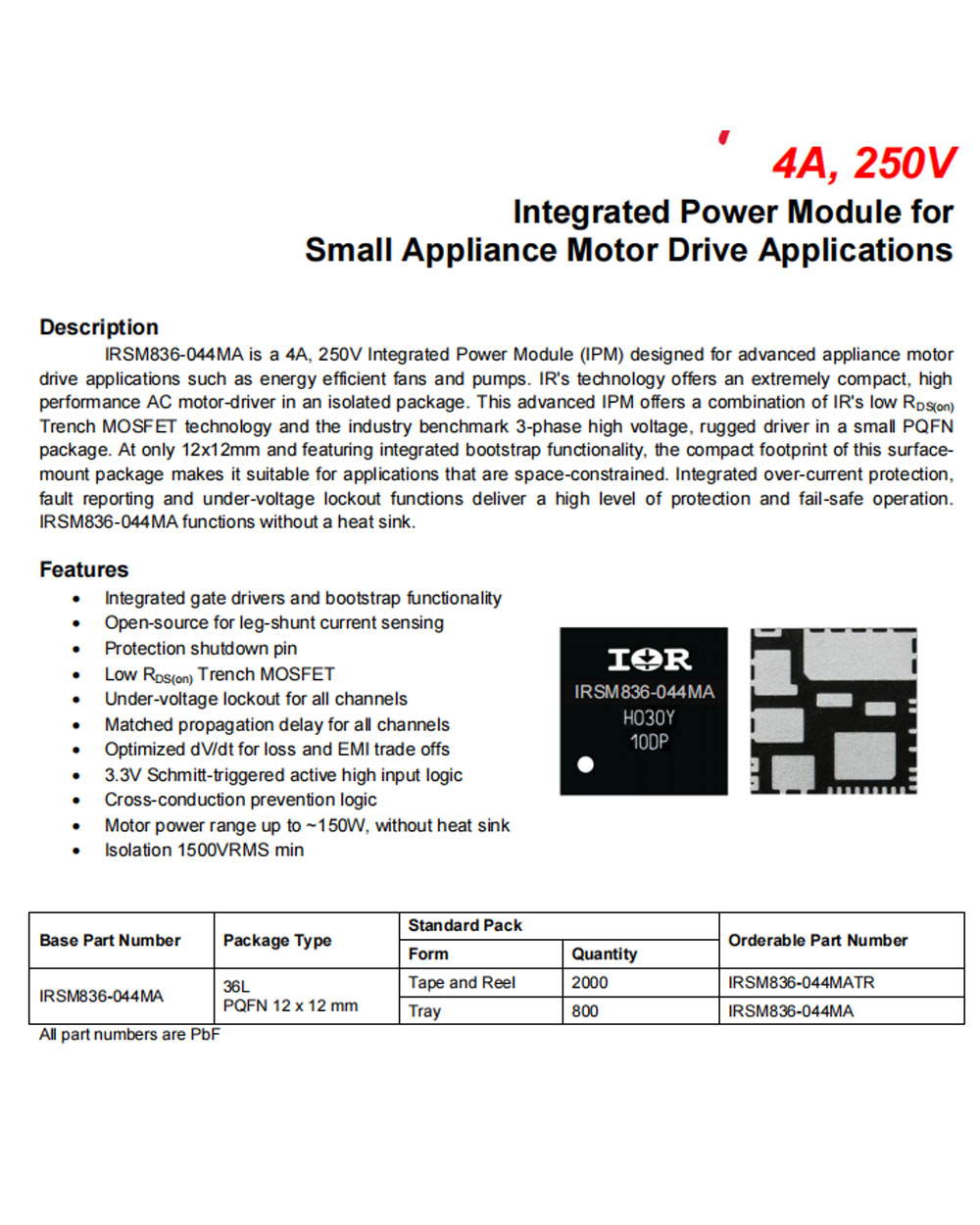

IRSM836-044MA

Integrated gate drivers and bootstrap functionality

Open-source for leg-shunt current sensing

Protection shutdown pin

 Low R DS(on) Trench MOSFET

Under-voltage lockout for all channels

 Matched propagation delay for all channels

 Optimized dV/dt for loss and EMI trade offs

3.3V Schmitt-triggered active high input logic

 Cross-conduction prevention logic

 Motor power range up to ~150W, without heat sink

Isolation 1500VRMS min
