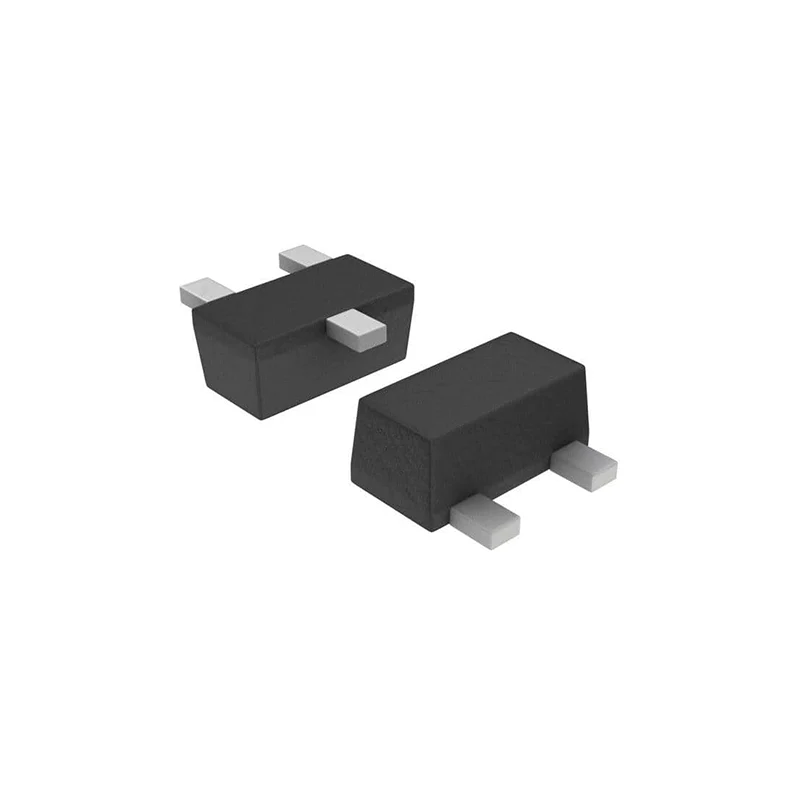

A diode is a semiconductor device that allows current to flow in one direction while blocking it in the opposite direction. It is a two-terminal electronic component that is used in various electronic circuits for different purposes, including rectification, voltage regulation, signal detection and protection against voltage surges. There are many different types of diodes, such as silicon, germanium, Zener, and Schottky diodes, each with unique properties and characteristics. Diodes are widely used in electronic devices and systems such as power supplies, LEDs, solar cells, and communication systems. Their ability to control the flow of current makes them an important component in many electronic designs.
A diode is a two-terminal electronic component that only allows current to flow in one direction while blocking it in the opposite direction. This behavior is due to the presence of a p-n junction, which is formed by joining a material with an excess of electrons (n-type) to a material with a deficiency of electrons (p-type).
One of the primary functions of diodes is rectification, which is the process of converting alternating current (AC) to direct current (DC). When a diode is connected to an AC source, it allows current to flow only in one direction, effectively removing one half of the AC waveform. This results in a pulsating DC voltage.
Diodes are also used for voltage regulation, either as regular diodes or as Zener diodes. Regular diodes can be used to drop a fixed amount of voltage in a circuit, while Zener diodes can be used to regulate voltage levels by allowing current to flow in reverse bias condition once the reverse breakdown voltage is reached.
Diodes also can be used in signal detection, where small signals are sensed by the diode and converted into useful direct current (DC) levels. In these applications, the diode is connected in series with a load resistor, and the output is taken across the resistor.
In summary, diodes are widely used in electronic circuits for various purposes, including rectification, voltage regulation, and signal detection. The ability of diodes to allow current to flow in one direction but block it in the opposite direction makes them an important component in modern electronics.
The forward voltage of a diode is the voltage level required to allow current flow in the forward direction. In order for a diode to conduct current, the forward voltage must exceed a value called the diode's "forward voltage drop". This amount of voltage drop is a semiconductor material property that varies depending on the type and construction of the diode.
The forward voltage drop is typically measured in tens or hundreds of millivolts for signal diodes, while power diodes can have a forward voltage drop of several volts. The forward voltage drop is a crucial factor in diode selection for power conversion and rectification circuits, and it must be kept low to avoid losses and excessive heat generation.
The forward voltage also affects the output of diodes in LED lighting applications. The amount of voltage drop determines the color of the LED, with different colors possessing different forward voltage values. For example, red LEDs typically have a forward voltage drop of 1.8-2.2 volts, while blue and white LEDs have higher forward voltage drops. This characteristic also forms the basis of using LED diodes as a voltage reference in electronic circuits.
In summary, the forward voltage of a diode is an important characteristic that determines the operating conditions and performance of the diode. Understanding the forward voltage drop of a diode is crucial in selecting the right component for a particular application.
The primary difference between a Zener diode and a regular diode is their operating mode. While both types of diodes allow current flow in one direction and block it in the other, a Zener diode is designed to operate in reverse breakdown voltage whereas a regular diode operates in the forward bias condition.
A Zener diode is a type of diode that is specially designed to break down and conduct current in reverse-biased direction when the voltage across it exceeds a certain value, known as the Zener voltage. This voltage breakdown enables the Zener diode to function as a voltage regulator, allowing it to maintain a stable output voltage even when input voltage fluctuates. Zener diodes are often used as voltage regulators in electronic circuits, protecting sensitive components or regulating voltage levels.
In contrast, regular diodes conduct current only in the forward direction, and when the voltage across them is reverse-biased, they block current flow almost completely, limiting current flow to leakage current. Regular diodes are widely used in electronics, such as rectifiers, switches, and signal detectors.
Moreover, Zener diodes can be used in voltage reference circuits, where the voltage across the diode remains stable regardless of current flow or temperature changes. Regular diodes don't have this feature as they are not designed to perform in reverse-biased conditions.
In summary, while both diode types exhibit similar functionality when forward biased, they are used in different ways in electronic circuits. The Zener diode is used as
The symbol for a diode is an arrow pointing in the direction of current flow.
Reverse bias is the condition when the voltage across a diode is applied in the opposite direction to its forward bias direction.
The lifespan of a diode can vary depending on its operating conditions, but on average a diode can function for several thousand hours before it deteriorates or fails.
