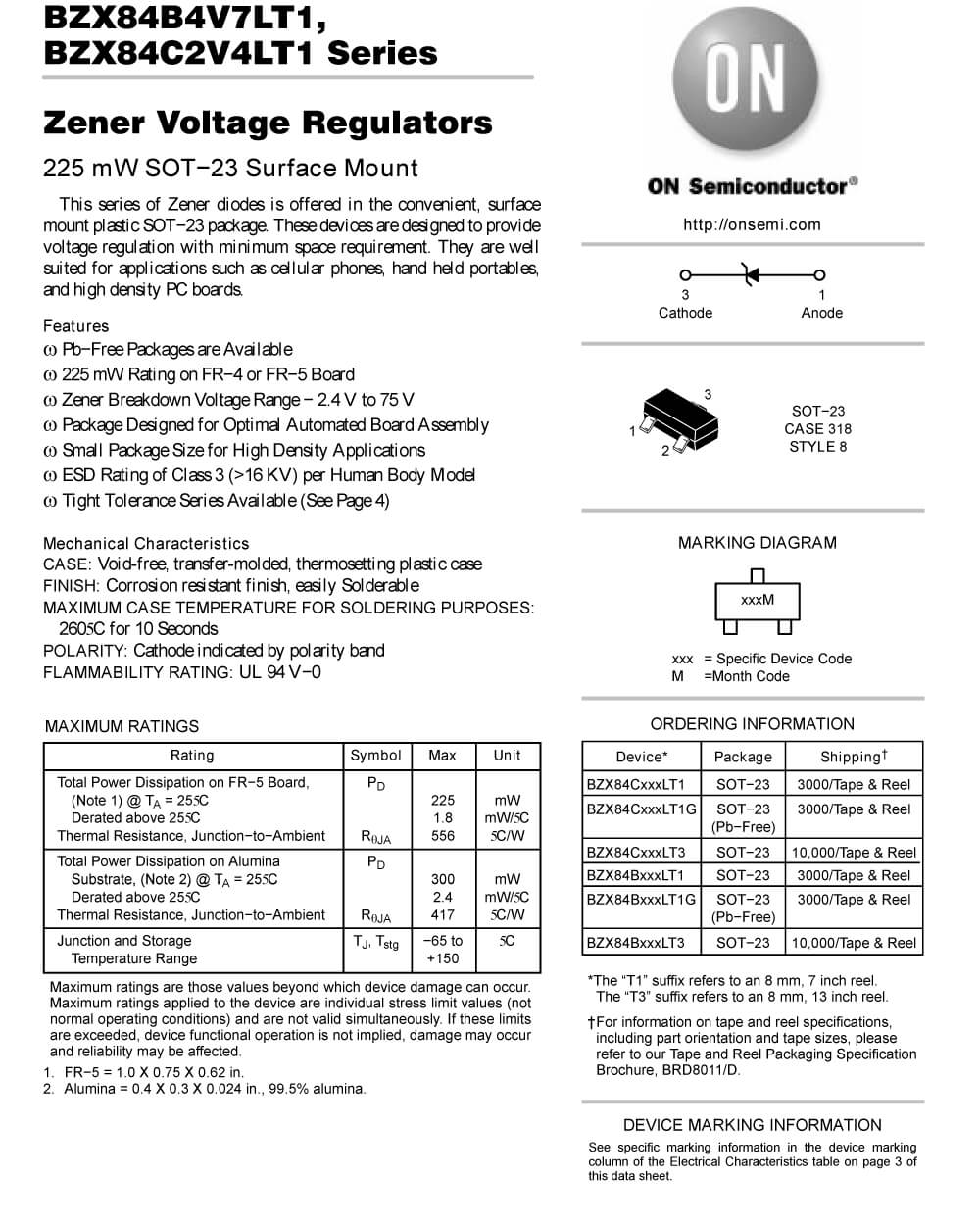

Pb−Free Packages are Available
225 mW Rating on FR−4 or FR−5 Board
Zener Breakdown Voltage Range − 2.4 V to 75 V
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
ESD Rating of Class 3 (>16 KV) per Human Body Model

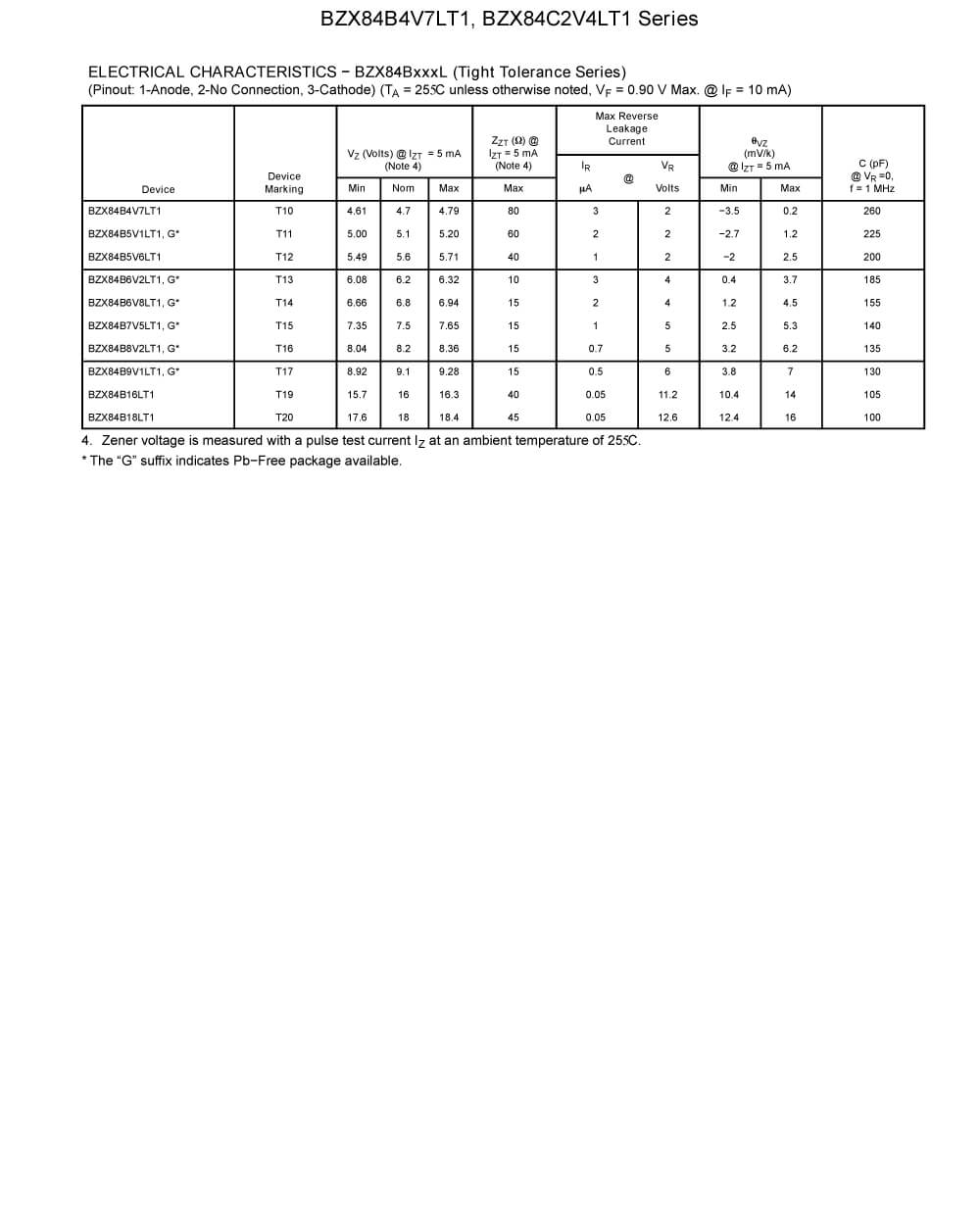

Tight Tolerance Series Available (See Page 4)
Type | Description |
Product Status: | Obsolete |
Voltage - Zener (Nom) (Vz): | 9.1 V |
Tolerance: | ±2% |
Power - Max: | 225 mW |
Impedance (Max) (Zzt): | 15 Ohms |
Current - Reverse Leakage @ Vr: | 500 nA @ 6 V |
Voltage - Forward (Vf) (Max) @ If: | 900 mV @ 10 mA |
Operating Temperature: | -65°C ~ 150°C (TJ) |
Mounting Type: | Surface Mount |
Package/Case: | TO-236-3, SC-59, SOT-23-3 |
Supplier Device Package: | SOT-23-3 (TO-236) |
