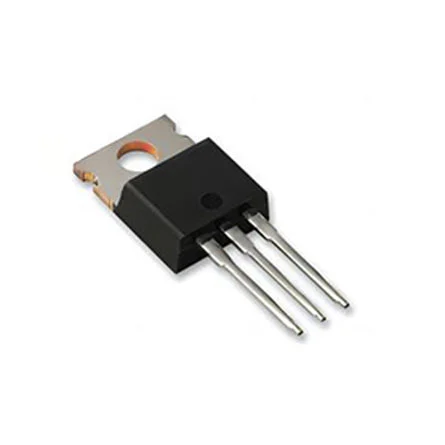

TIP132

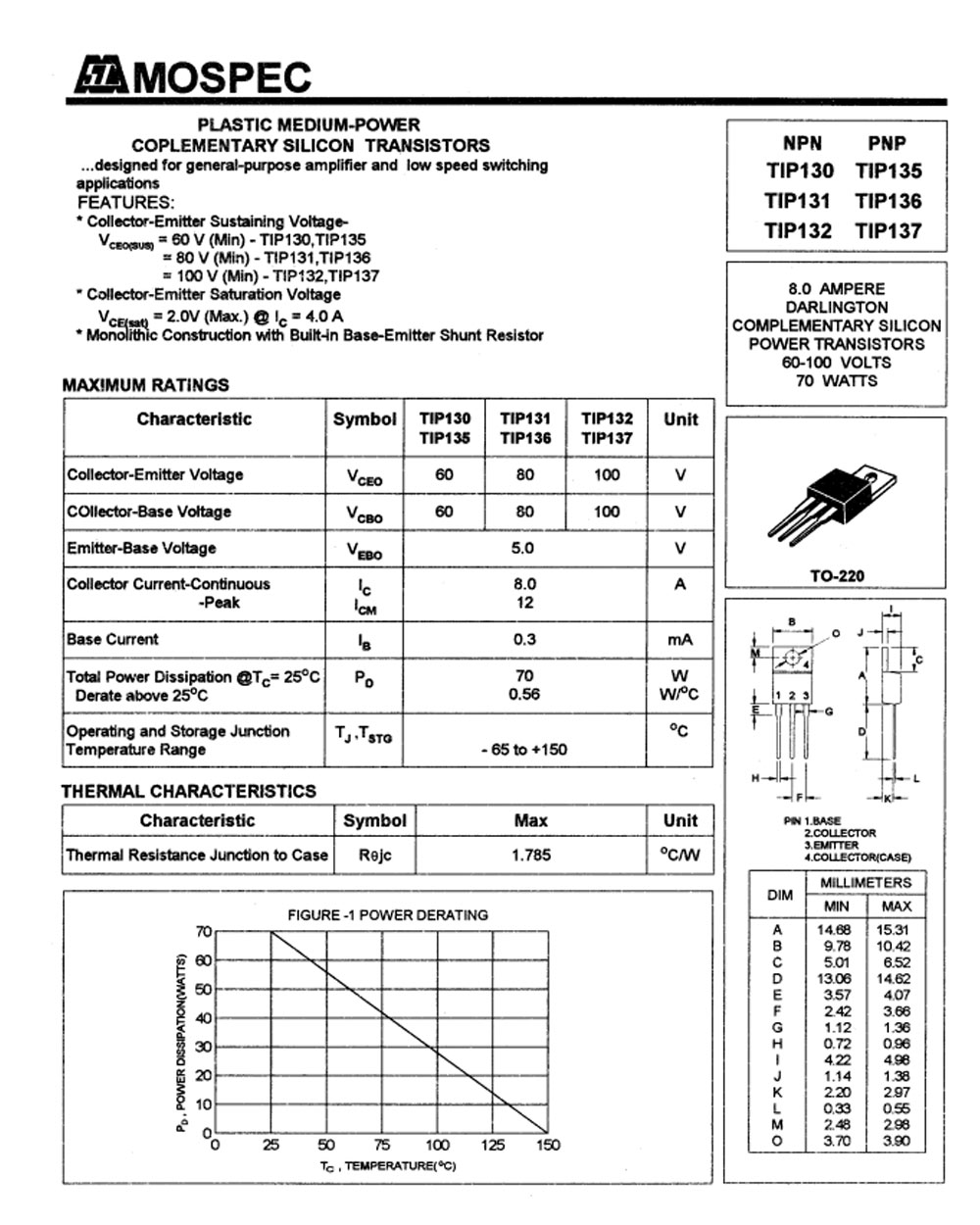

• Collector-Emitter Sustaining Vortage-

  V_CEO(SUS) =60 V (Min) -TIP130, TIP135

                       =80 V (Min) -TIP131, TIP136

                       =100 V (Min) -TIP132, TIP137

• Collector-Emitter Saturation Voltage

       V_CE(sat) = 2.0 V (Max.) @ lc =4.0 A

• Monolithic Construction with Built-in Base-Emitter Shunt Resistor
