S3AB

Name: S3AB
Brand: Jinjiana Electronic Co.,Ltd.
Availability: InStock

Buy S3AB

Features Of S3AB

For surface mounted applications
Low profile package
Glass Passivated Chip Junction
Easy to pick and place
Lead free in comply with EU RoHS 2011/65/EU directives

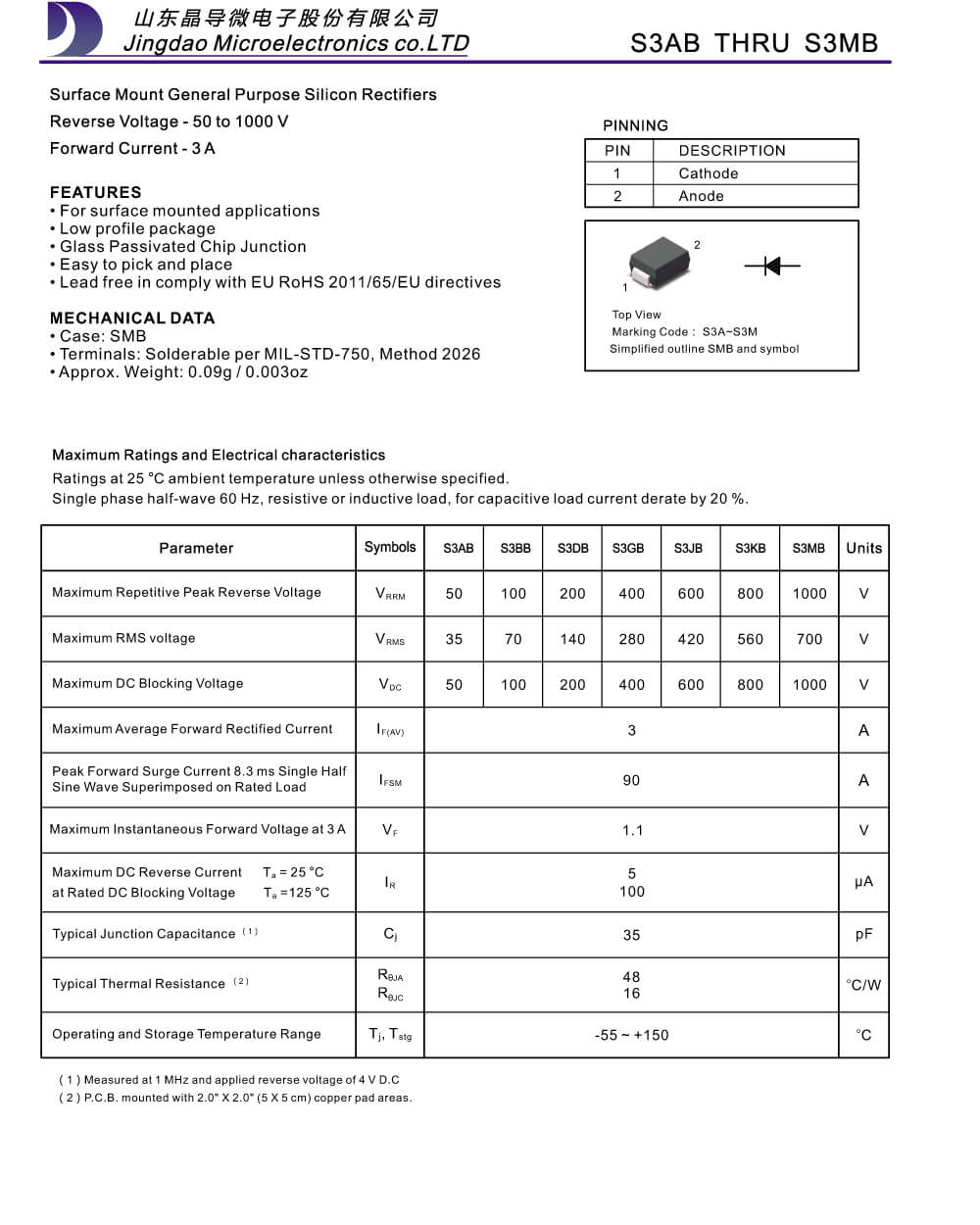

Details Of S3AB

Surface Mount General Purpose Silicon Rectifiers

Reverse Voltage - 50 to 1000V

Forward Current - 3A

Features of S3AB

For surface mounted applications

Low profile package

Glass Passivated Chip Junction

Easy to pick and place

Lead free in comply with EU RoHS 2011/65/EU directives

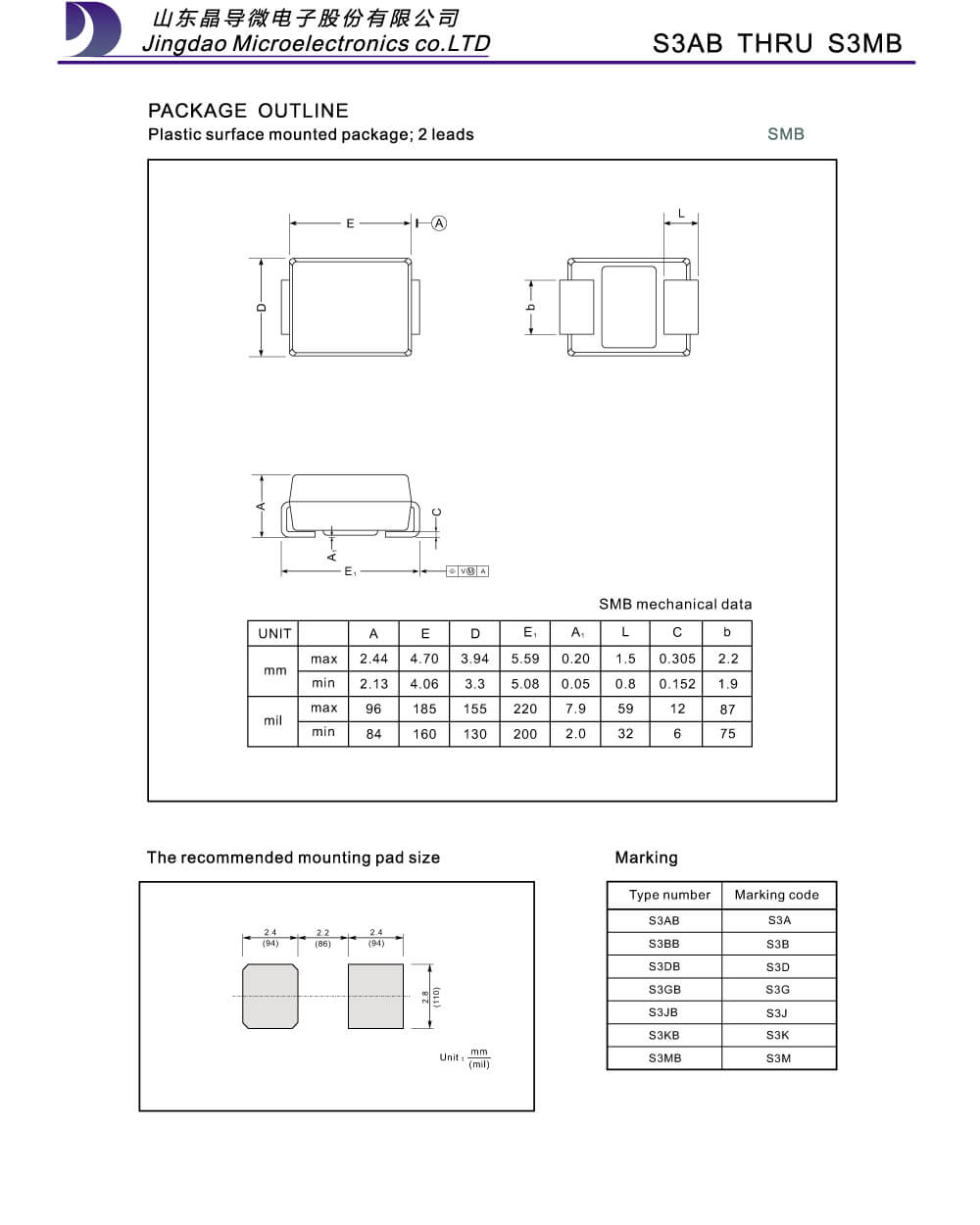

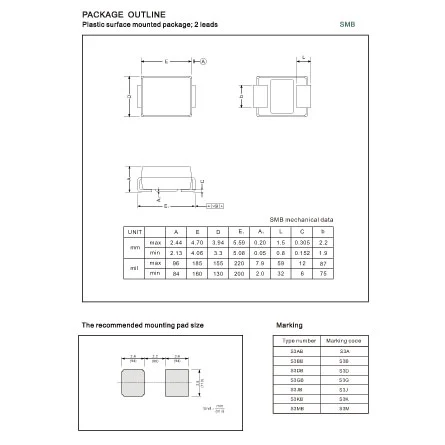

MECHANICAL DATA of S3AB

Case: SMB

Terminals: Solderable per MIL-STD-750, Method 2026

Approx.Weight: 0.09g / 0.003oz

Maximum Ratings and Electrical characteristics of S3AB

Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20%.

Parameter	Symbols	S3AB	S388	S3DB	S3GB	S3JB	S3KB	S3MB	Units
Maximum Repetitive Peak Reverse Voltage	V_RRM	50	100	200	400	600	800	1000	V
Maximum RMS voltage	V_RMs	35	70	140	280	420	560	700	V
Maximum DC Blocking Voltage	V_oc	50	100	200	400	600	800	1000	V
Maximum Average Forward Rectified Current	I_F(_av₎	3							A
Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load	I_FSM	90							A
Maximum Instantaneous Forward Voltage at 3 A	V_F	1.1							V
Maximum DC Reverse Current T₄=25℃ at Rated DC Blocking Voltage Ta=125°℃	I_R	5 100							μA
Typical Junction Capacitance(1)	C_ξ	35							pF
Typical Thermal Resistance(2)	RθJA RθJC	48 16							°C/W
Operating and Storage Temperature Range	T_j,T_stg	-55~+150							°C
